21W T8 LED Tube Light SMD301435285050 lumenmax, Epistar chips, 6063 Aluminum +Japan Teijin PC
Basic Info.
| Model NO.: | LT-T8-21w |
|---|---|
| Surface Temperaturte: | 45degrees |
| Light Source ( LED Chips) Brand: | Epistar |
| Overall Size: | 26 X 1200mm |
| Rating Power: | 21 Watts |
| Life Span: | 50, 000 Hours |
| LED Qty: | 312PCS |
| Material: | 6063 Aluminum +Japan Teijin PC lens |
| IP Rate: | IP45 |
| Product Name: | 21W T8 LED Tube Light |
| Export Markets: | Global |
Additional Info.
| Trademark: | LongTech |
|---|---|
| Packing: | 1220 X 228 X 208mm |
| Standard: | 26 x 1200mm |
| Origin: | Shenzhen, China |
| HS Code: | 9405409000 |
| Production Capacity: | 2000PCS/day |
Product Description

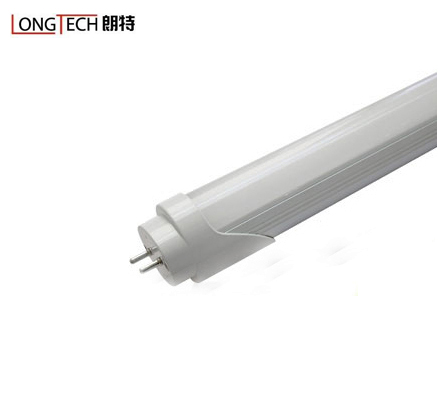

21W T8 LED Tube Light
Product Features:
Rating power: 21 watts
LED Qty: 312 PCS
Luminous efficacy: 84lm/watt
Overall Size: 26 x 1200mm
Physical Parameters:
Overall Size: 26 x 1200mm
Housing material: 6063 Aluminum
Base material: PC
IP Rate: IP45
Life span: 50, 000 hours
Net weight: 0.35kg
Surface temperaturte: 45degrees
LED weld point temperature: 48degrees
Working temperature: -20- 45degrees
Storage temperature: -20 - 80degrees
Storage humidity: 20%~ 80%
Working humidity: 10%~90%
Indoor use
Non-dimmable
Optical Parameters:
Output lumens: 1400m(warm white), 1780lm( neutral white & cool white)
Color temperature: Warm white(3000-3500K), Daylight white(3500-4500K), Cool white(5000-6000K) options
Light source ( LED chips) brand: Epistar
Numbers of LEDs: 312 pieces
Emitting angle: 120 degrees options
Color rendering index: 80+(warm white), 70+(daylight white & cool white)
Illuminance: 240 LX @ 1.0M, 70LX @2.0M, 30LX @3.0M
Luminous efficacy: 84lm/watt
Electrical Parameters:
Working voltage: 85-264VAC
Frequency: 50-60Hz
Rated power: 21 watts
Protection: Input over current protection, Output short circuit protection, Output over current protection
Pass EMI & LVD testing
Power factor: 0.9
Constant current LED driver
Packaging Details:
Volume: 20 units per carton
Gross weight: 14kg
Carton measurement: 1220 x 228 x 208mm
Type of packaging: Neutral packaging or as client requested led tube light
