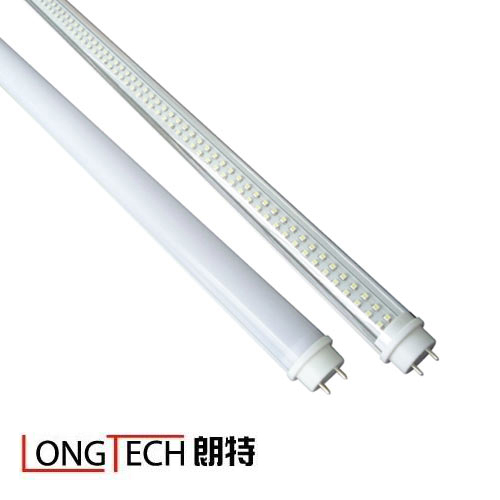

Product Name: 20W T10 LED Tube light 1200mm 4ft SMD3528
T10 LED Tube Light
T10 LED Tube Light saves 70-80% energy compared with fluorescent tubes and works for about 3 times longer than them. With the advantages like free maintenance, instant start, low heat, no mercury or other hazardous materials (found in fluorescents), easy replacement, etc.,T10 LED tube becomes an excellent substitute for traditional tube lights. Now T10 LED Tube lighting have had multiple choices for different applications like office, warehouse, school, store, supermarket and other public areas.
| Size | 300mm (1feet) | 600mm (2feet) | 900mm (3feet) | 1200mm (4feet) | |||||||
| Power | 3W | 4W | 5W | 8W | 10W | 8W | 15W | 15W | 16W | 18W | 20W |
T10 LED Tube lighting
20W T10 LED Tube light Replace 50W T10 fluorescent tubes(no need starter and ballast)
Parameters
| Item | LT-T10-20W |
| Base Type | T10 |
| Power consumption | 20 Watt |
| Led Brand | Epistar SMD3528 |
| LED Qty | 336 pcs |
| Size | Φ30*1200mm (4feet) |
| Packing size/Weigt | 250g / pc |
| Luminous Flux(lm) | 1900 LM (Transparent Cover) |
| 1750 LM (Frosted cover) | |
| Color Temperature | WW:3000~3500K |
| NW:4000-4500K | |
| CW:6000-6500K | |
| Tube Material | Aluminum alloy + PC |
| Aluminum Substrate heat sink body | |
| Led Luminous Efficiency | 95LM/W |
| Lamp Light Effect | 80 LM/W |
| Beam Angle | 140°(Clear cover) |
| 190°(Frosted cover) | |
| Input Voltage | AC85-265V |
| AC input frequency | 47-63Hz |
| Power Supply Efficiency | >91% |
| Power Factor | >0.95 |
| Housing Color | Silver |
| CRI | Ra:80 |
| LED service life | >50,000 hours |
| Environment Temperature | -30~+45 degree celsius |
| Environment Humidity | <95% |
| Body Temperature | <55(Room Temp:25) |
| IP Rating | IP 44 |
| Certificates | CE&RoHS PSE led tube light |
